Small Mechanical Type Steel Wire Cutter Wire Straightening And Cutting Machine
Wire Straightening And Cutting Machine Description
Small mechanical wire straightening and cutting machine consists of frame, straightening mechanism, feed mechanism, cutting mechanism, linear gun and wire frame and other parts.
Straightening part consists of straightening shaft, straightening pressure block and both ends of the bearing seat to complete the straightening of the wire work. Its power is installed in the lower part of the motor frame, through the triangular tape driven straight shaft rotation.
Customer Feedback of Wire Straightening And Cutting Machine
Our machines have been highly recognized by our customers,We have our own special producing engineering for all of our machines,which need much more working and to use much better material on the products,and then make the quality much better than others.
Wire Straightening And Cutting Machine Application
It is suitable for ordinary iron wire, spring steel, water pumping line, powder pumping line, carbon steel wire, stainless steel wire, copper and other non-ferrous metal wire for straightening and cutting. It is widely used in the mesh industry, commodity shelf, storage cage, shopping handcart, plating hangers, iron wire products, lighting, spring and other industries.
Packaging and shipping
Machines would be packed up well with wooden case,which can guarantee no damage during the transportation.The shipping method depends on our customer requirements.We can do air door delivery by DHL/FedEx,or to the airport only,as well as shipping to the port or the door step by sea.Just tell us your demand and we would meet all your requirements.
Wire Straightening And Cutting Machine Parameter
| Wire Diameter | 2.0-4.0 mm |
| Input Voltage | 380V 50Hz ( Customized) |
| Steel wire surface | Black wire,galvanized wire,copper wire,stainless steel wire,etc |
| Cutting Length | 2000mm ( Customized) |
| Tolerance of cut-to-length | ±1mm |
| Linearity of straightening | ≤2mm/m |
| Cutting Method | Mechanical cutting |
| Straightening Speed | 40 m / min |
| Weight | 160kg |
| Packaging | Wooden box |
Wire Straightening And Cutting Machine

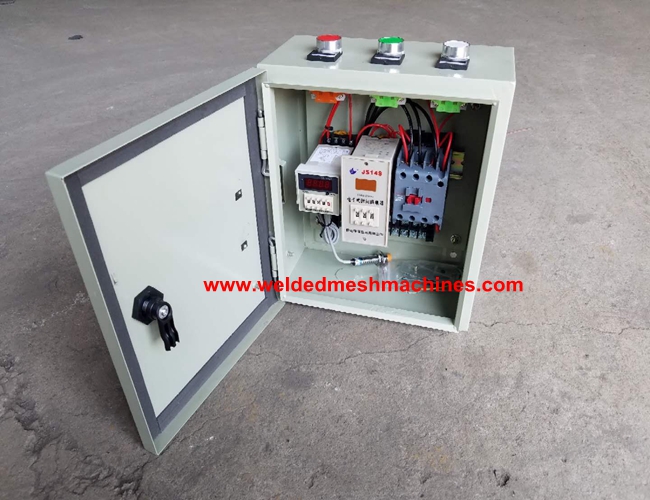

Control system: The control box can calculate the number of wire cuts.When the machine reach the quantity,it will stop automatically.

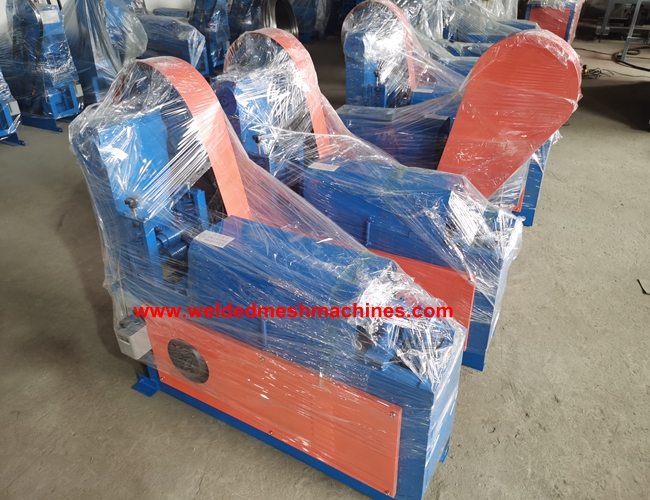

Package of the machine
Machine with security cover
