2500 Width 50 Electrodes Fence Mesh Welding Machine For Construction
Fence Mesh Welding Machine Description
Fence mesh welding machine is also called Welded Wire Mesh Panle Machine. It adopts PLC control system with visual touch screen input. The operation is more intelligent and convenient. Both the line wire and cross wire are feed from pre-cut wire. The line wire are put by labor and feeding automatically. When the machine is welding and pulling mesh, Labor can prepare the line wire for the next mesh in advance. This can improve production efficiency. The cross wire feed from multi hopper and fall automatically. The mesh panel is pulled by the servo motor repeated.
Fence Mesh Welding Machine Feature
1. The machine is controled by PLC control system with visual touch screen input,
2. Both the warp wire and weft wire are feed from pre-straightening &cutting wire.So the mesh panel is better in flatness after weldeing.
3. The machine can weld all the intersection points in one weft wire one time.This greatly improves the production efficiency.
4 .The fence mesh welding machine adopts separate times welding,reduced the load of the power source,making energy efficient.
5. When the machine is welding and pulling mesh, worker can prepare the warp wire for the next mesh in advance.
Fence Mesh Welding Machine Application
The Fence Machine is widely used in Construction Materials plant, Building Material Shops, Home use, Retail, Machinery Repair Shops, Manufacturing Plant, Farms,etc.
Fence Mesh Welding Machine Parameter
| Input Voltage | 3-phase 380V 50HZ | Line Wire Feeding | Pre-cut wire |
| Width of Mesh | ≤2500mm | Cross Wire Feeding | Pre-cut wire |
| Line Wire Space | 50-300mm | Cross Wire Space | 25-300mm |
| Wire Diameter | 2.5-6mm | Number of Electrode | 48 pieces |
| Rated Capacity | 125kva*6sets | Welding Speeding | 45-75 times/min |
| Weight | 4000kg | Overall Size | 8.4*3.4*1.6M |
| The specification is customized according to customers’ requirement. |
Fence Mesh Welding Machine Details
The welding electrode and copper bar are made of high chromium copper with good conductivity, wear resistance and long service life.
PLC control Cabinet:The electronic components are of high quality, with stable performance and low failure rate. Customers can also specify brands.

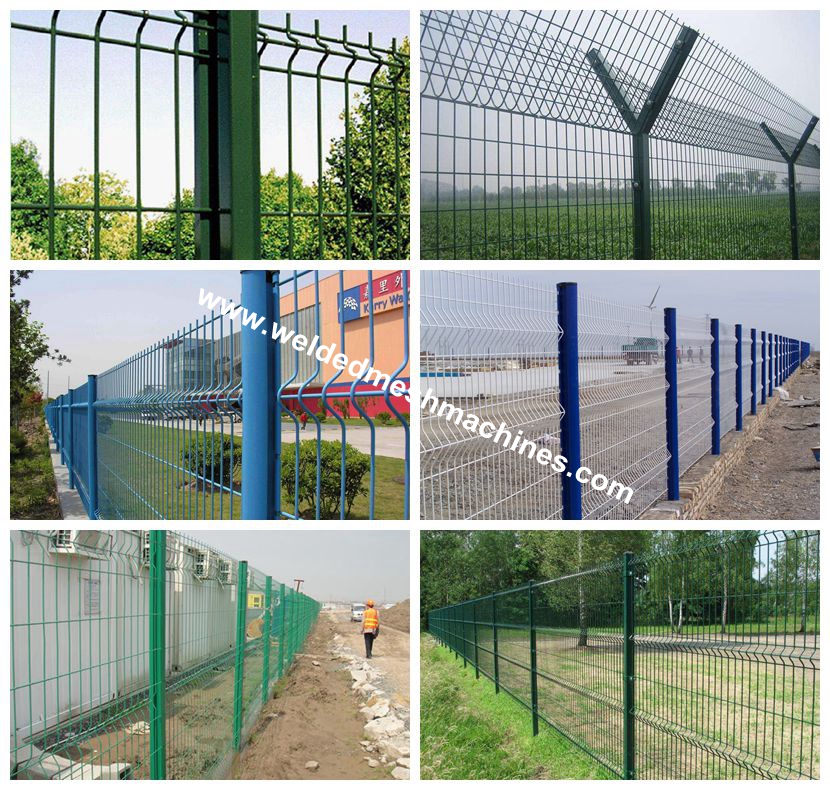

Finish Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory, professional wire mesh machine manufacture. We warmly welcome customers from worldwide to visit our factory and establish long-term cooperation.
Q: Do you do OEM?
A: Yes
Q: I know nothing about the import, can you help me?
A: It's a piece of cake. Don't worry about it. We specialize in export business, we will help you to import.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance. Operating Instruction&Maintenance Manual attached with the machine. we will send you the solution by email or phone within 24 hours, When we receive your service request. We can send you video for learning
Q: If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
2)Custom-made parts with detailed drawing can be provided
