Steel Bar Mesh 3300mm Width Reinforcing Mesh Welding Machine In Brazil
Reinforcing Mesh Welding Machine Description
This reinforcing mesh welding machine belongs to pneumatic welding machine. The welding electrode is installed on the cylinder. The pressure welding is carried out by the power of the cylinder.Compared with the mechanical spring pressure welding method, the pneumatic welding pressure is greater and the welding is more firm.Because the diameter of the welded steel bar is thick, the welding electrode is a high chromium copper block, not a copper bar. In this way, the welding area is large, the electric conductivity is good, and the welding is firm.
Reinforcing Mesh Welding Machine Technology
1. Output power increase 20%.
2. Air consumption save 30%.
3. Air cylinder length reduce 60%, short stroke.
4. Welding pressure: 570KG.
5. Piston rod don't rotate.
6. Single-acting cylinder, connect with electromagnetic valve by one air pipe.
7. Compared with old type machine, total power consumption saves 50%.
8. The welding speed can be up to max.80-100 times/min.
Reinforcing Mesh Welding Machine Parameter
| Wire diameter | 6.0-12.0mm | Warp wire | Pre-cut wire |
| Weft spacing | 100-200mm | Weft wire | Pre-cut wire |
| Warp spacing | 100-200mm | Rated voltage | 380V |
| Width | 2500mm | Rated power | 200KVA*12 |
| Welding speed | 60times/min | Motor | 11KW |
| Welding spots | 24 | Weight | 9.0T |
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory, professional wire mesh machine manufacture. We warmly welcome customers from worldwide to visit our factory and establish long-term cooperation.
Q: Do you do OEM?
A:Yes
Q: I know nothing about the import, can you help me?
A: It's a piece of cake. Don't worry about it. We specialize in export business, we will help you to import.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance. Operating Instruction &Maintenance Manual attached with the machine. we will send you the solution by email or phone within 24 hours, When we receive your service request. We can send you video for learning
Q:If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
Custom-made parts with detailed drawing can be provided

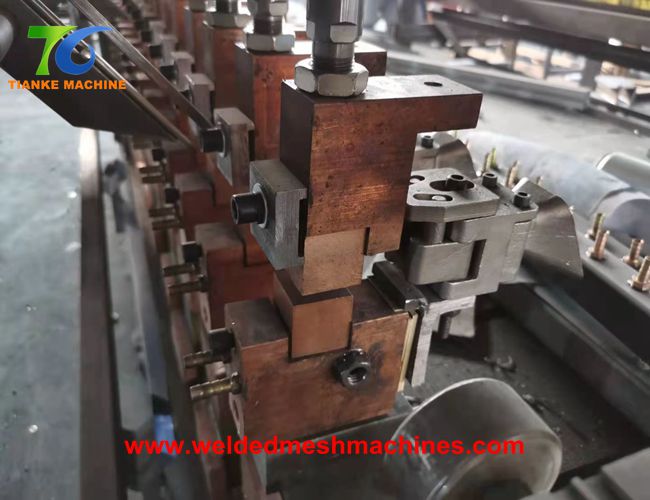

High Quality Welding Electrodes

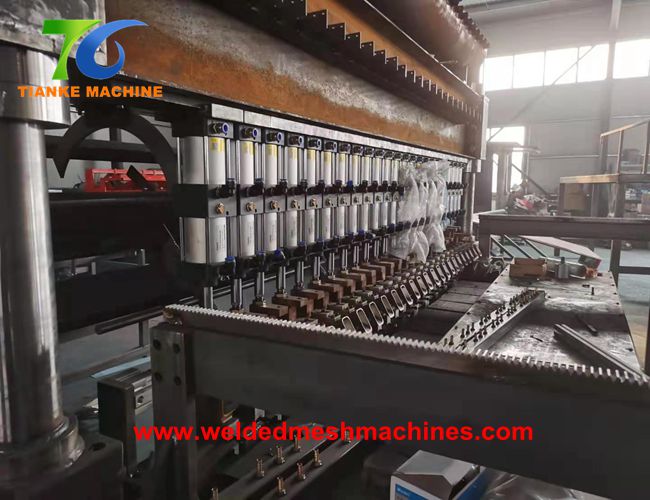

Cylinders
